Description
This industry leading coupler features New Generation AAR Type "E" Head Straight Centerset Shank Couplers, and #878 G Scale centering spring and comes complete with #910 Body Mount Gearboxes and lids.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
One pair per package
- AAR Type "E" Coupler
- Simple Drop in Design
- Hidden Knuckle Spring
- Trouble Free Operation
- Compatible with All Kadee® G-Scale Couplers
- World-Renowned Quality & Performance
- They just Last & Last & Last...
- Patent number 7,810,660 B1

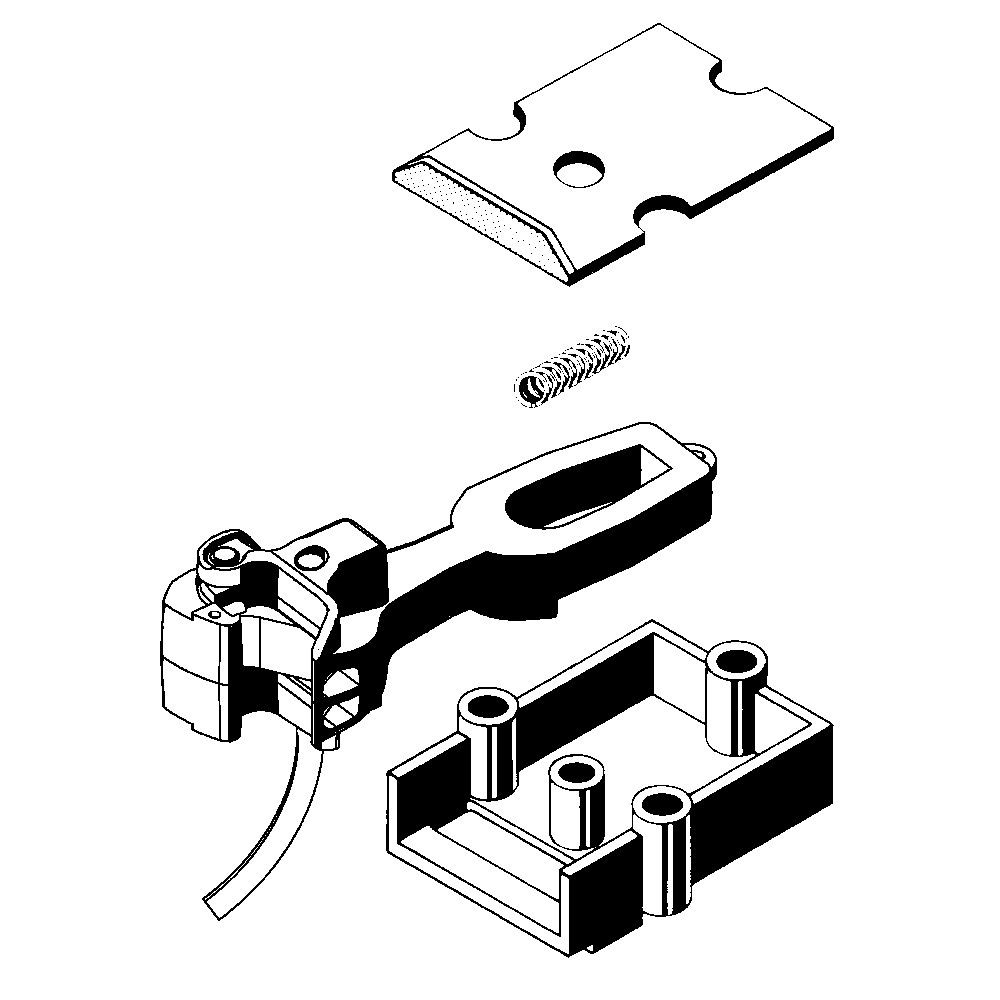

Package Includes:
- (2) Each #900 Type New Generation AAR Type "E" - Straight Centerset Shank
- (2) Each #910 Body Mount Gearbox & lids
- (3) Each #878 Centering Springs
- (4) Each #4 x 3/4" Screws
- (4) Each #4 x 1" Screws
#900 Plastic Coupler Features:
| Material | - Plastic |
| Shank Length | - (13/16") (Back of the Coupler Head to center hole of Draft Gearbox) |
| Coupler Offset | - Centerset |
| Centering Spring | - #878 G Scale Centering Springs |
| Head | - New Generation AAR Type "E" Head |
| Works In Place of | - #830, #906R, & #930 G Scale Straight Centerset Couplers |
| Works With | - #910, #910R Draft Gearboxes |

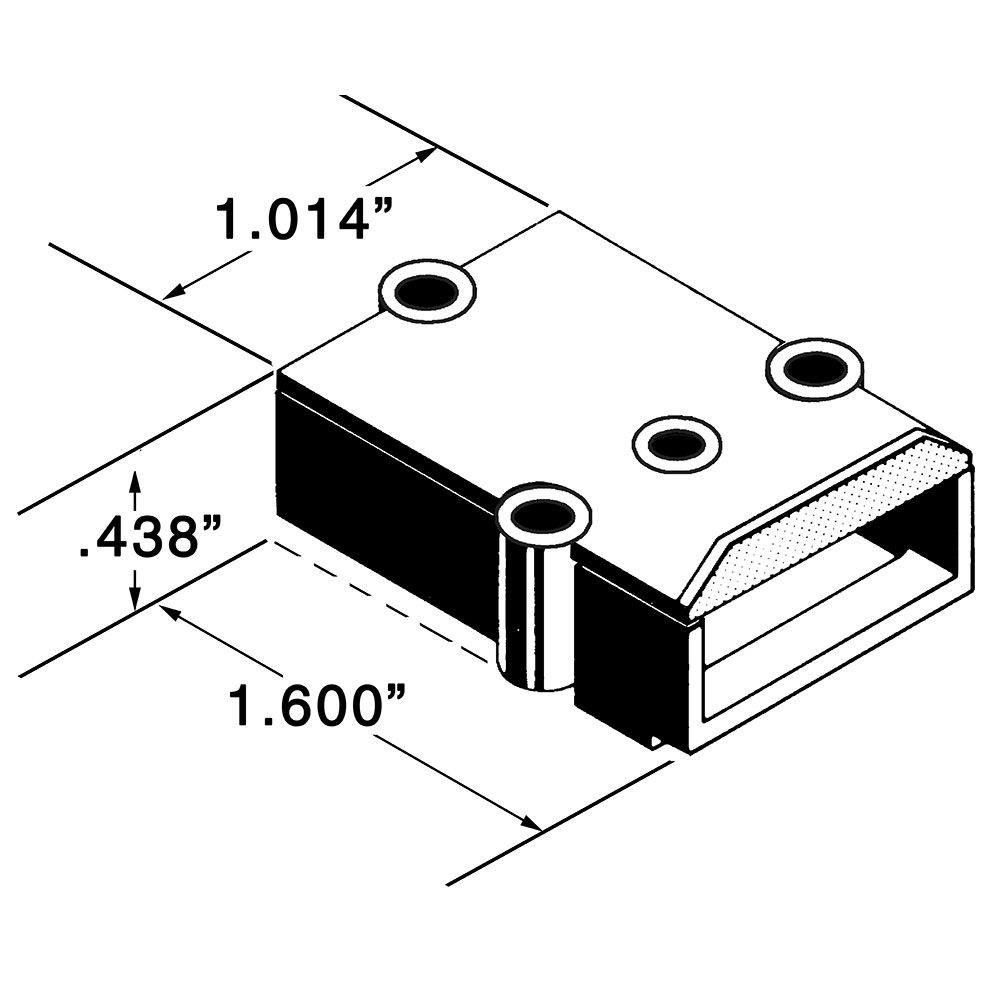

#910 Plastic Draft Gearboxes & Lids Features:
| Material | - Plastic |
| Dimensions | - 1 21/32"L x 15/32"W x 13/32"H |
| Works With | - #830, #906, #906R, & #930 Couplers |

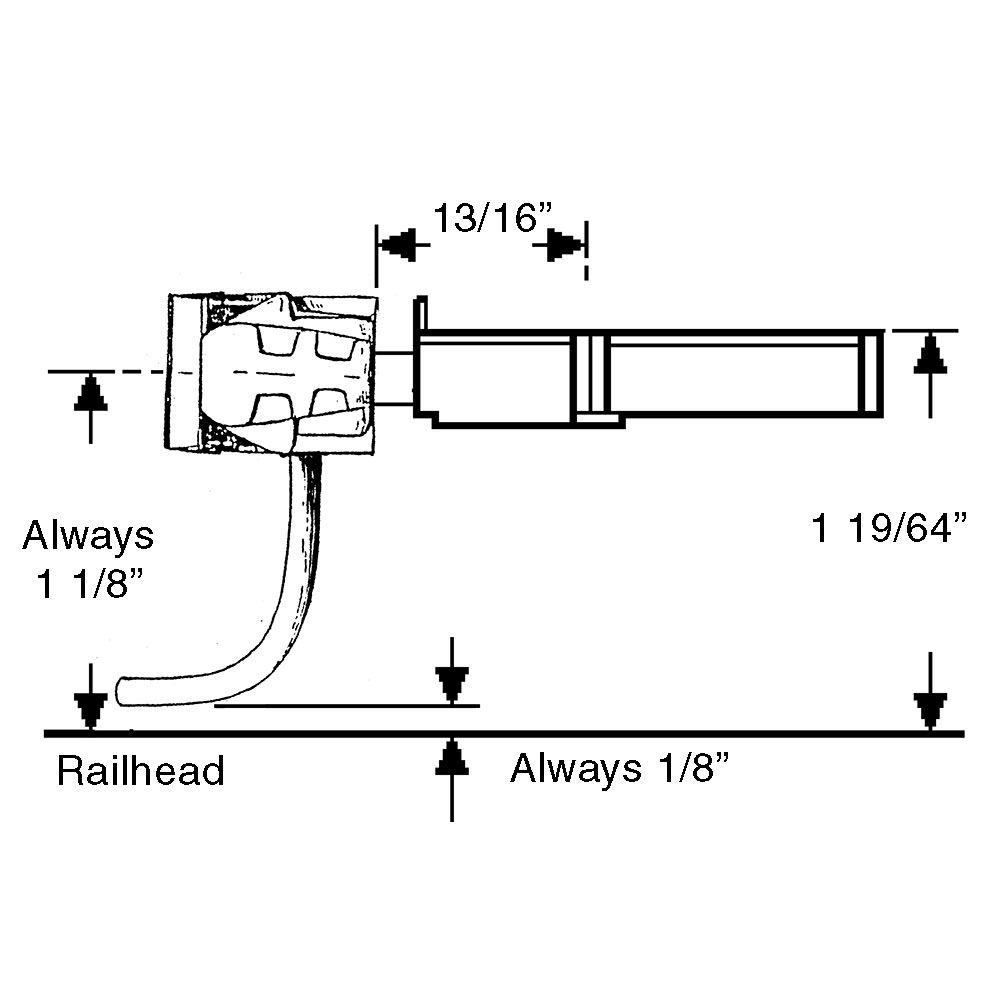

Mounting Specifications:
| Mounting Height | - 1 19/64" |
| Centerline | - 1 1/8" |
| Trip Pin Height | - 1/8" |
| Mounting Holes | - #4 Screws are the most commonly used. (Screw length will vary) |
