Description

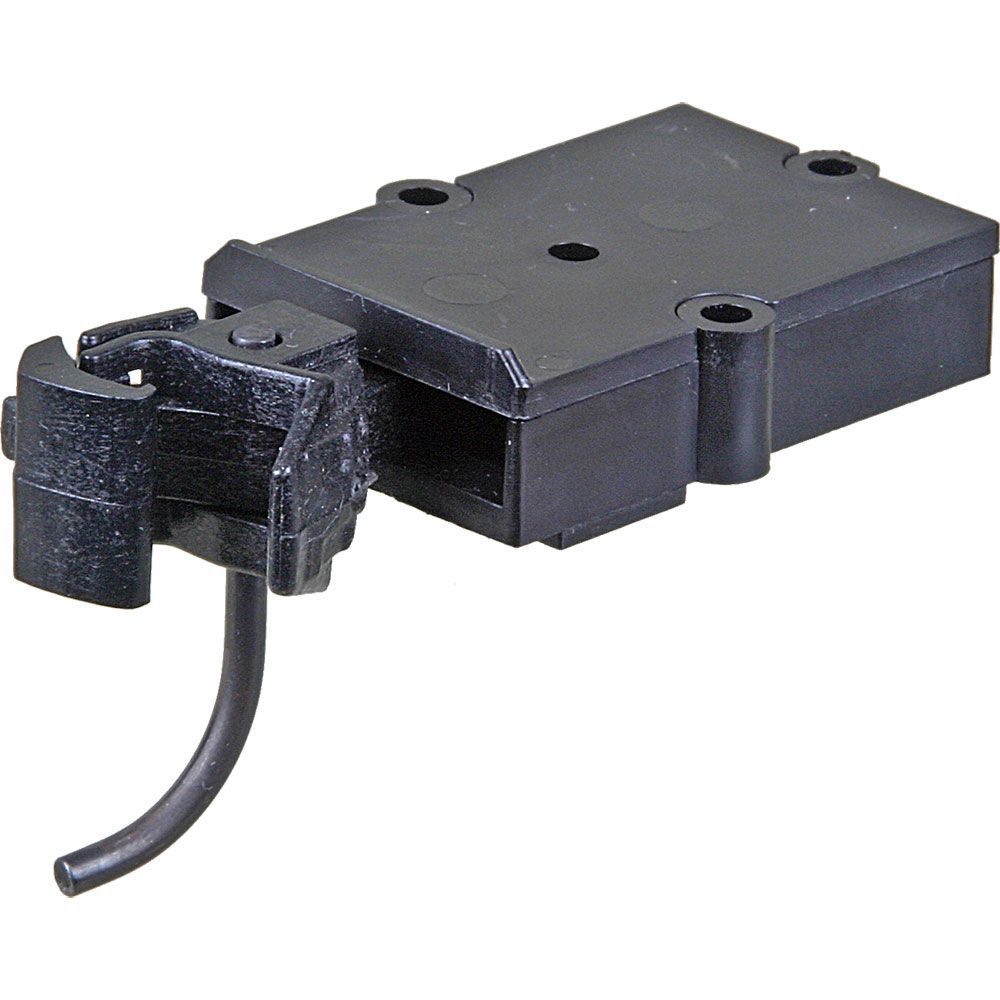

This industry leading coupler features Original Style Head Straight Centerset Shank Couplers, and #878 G Scale centering spring and comes complete with #910 Body Mount Gearboxes and lids.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
One pair per package
G-Scale
Simple Drop in Design
Trouble Free Operation
Compatible with All Kadee® G-Scale Couplers
World-Renowned Quality & Performance
They just Last & Last & Last...

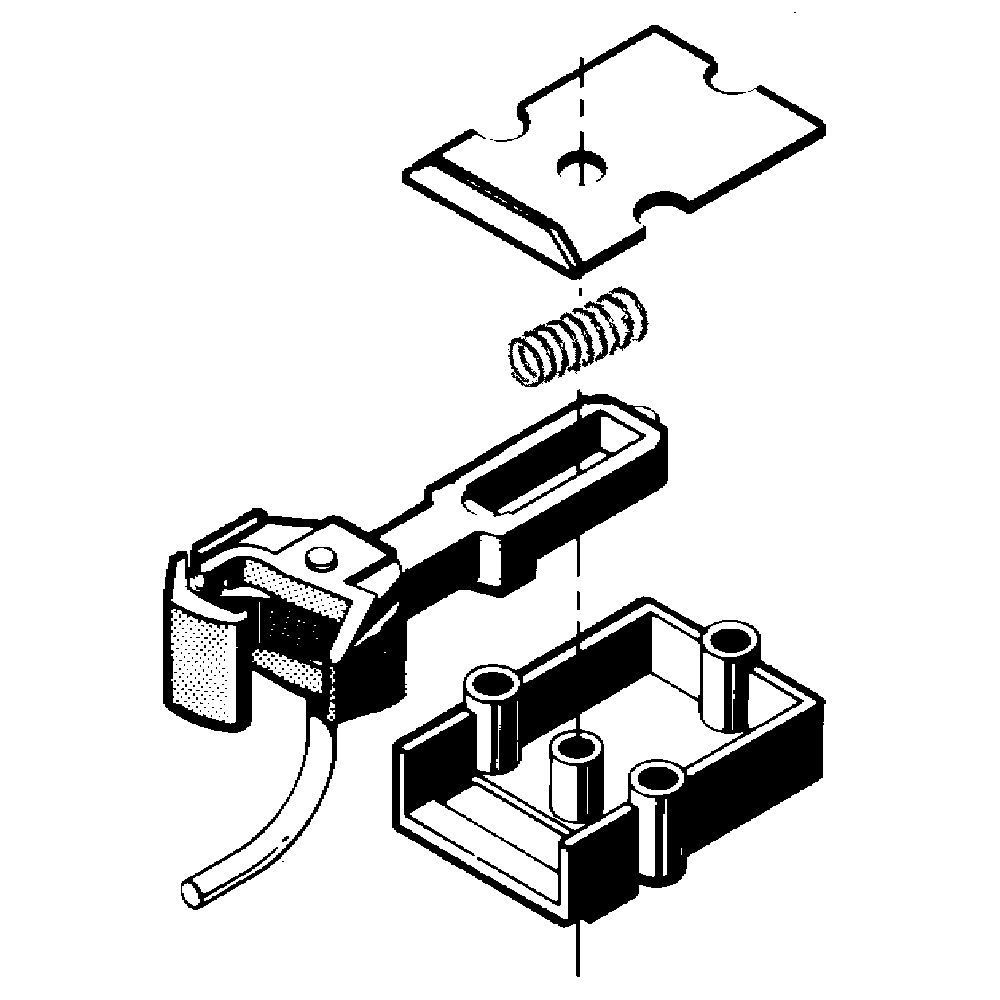

Package Includes:
(2) Each #830 Original Style Plastic Couplers - Straight Centerset Shank
(2) Each #910 Body Mount Gearbox & lids
(3) Each #878 Centering Springs
(1) Each #860 Knuckle Springs
(4) Each #4 x 3/4" Screws
(4) Each #4 x 1" Screws
#830 Plastic Coupler Features:
Material - Plastic
Shank Length - (13/16") (Back of the Coupler Head to center hole of Draft Gearbox)
Coupler Offset - Centerset
Centering Spring - #878 G Scale Centering Springs
Knuckle Spring - #860 G Scale Knuckle Springs
Head - Original Style Head
Works In Place of - #906, #906R, & #930 G Scale Straight Centerset Couplers
Works With - #910, #910R Draft Gearboxes

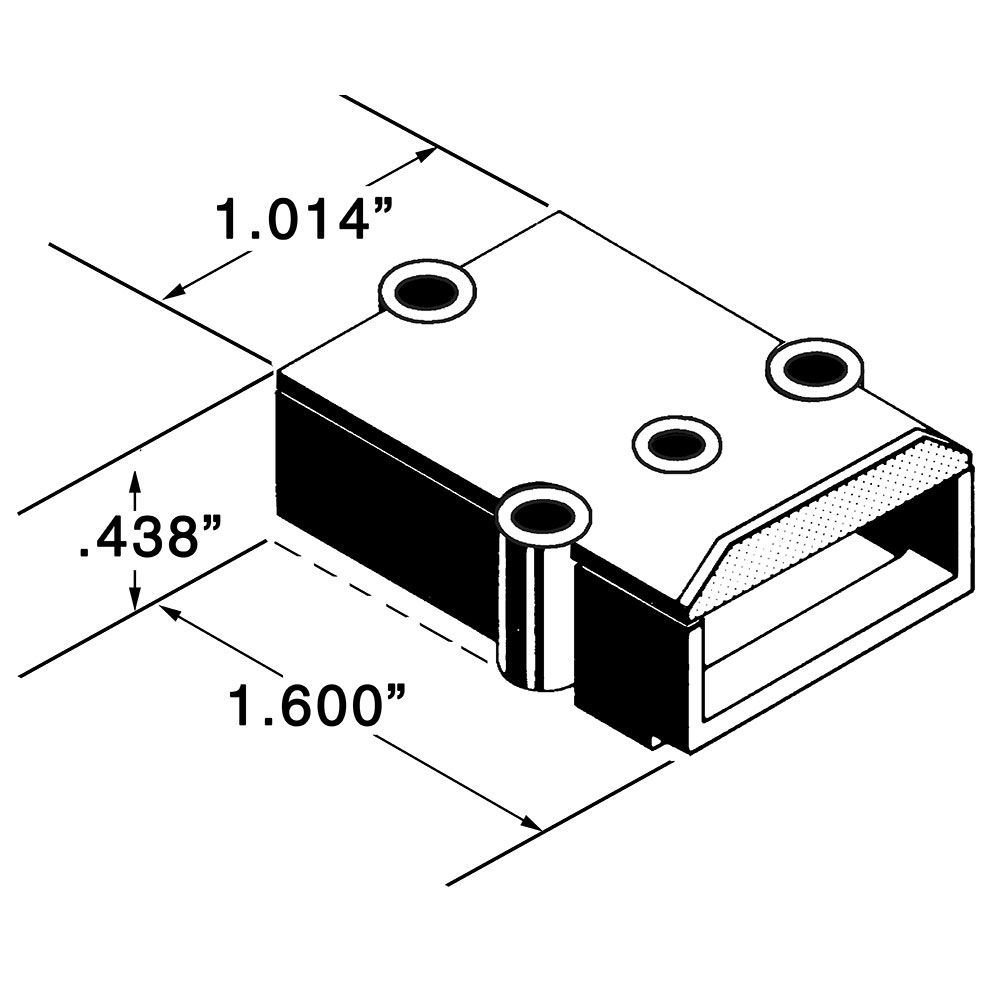

#910 Plastic Draft Gearboxes & Lids Features:
Material - Plastic
Dimensions - 1 21/32"L x 15/32"W x 13/32"H
Works With - #830, #906, #906R, & #930 Couplers

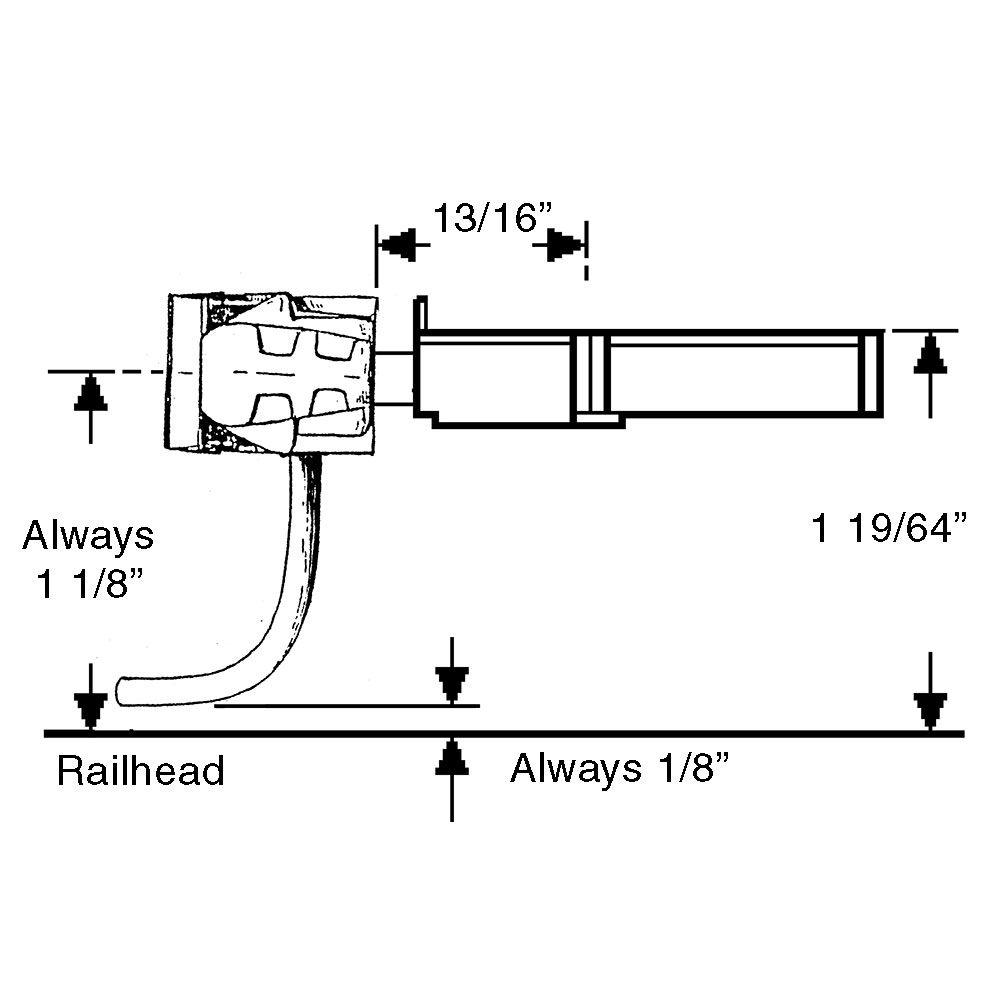

Mounting Specifications:
Mounting Height - 1 19/64"
Centerline - 1 1/8"
Trip Pin Height - 1/8"
Mounting Holes - #4 Screws are the most commonly used. (Screw length will vary)
