KADEE 27 HO Scale, 20-Series Plastic Couplers with Gearboxes - Medium (9/32") Underset Shank, (2 Pair)

HOSave 25%

Price:
Sale price$4.49 Regular price$5.99

Description

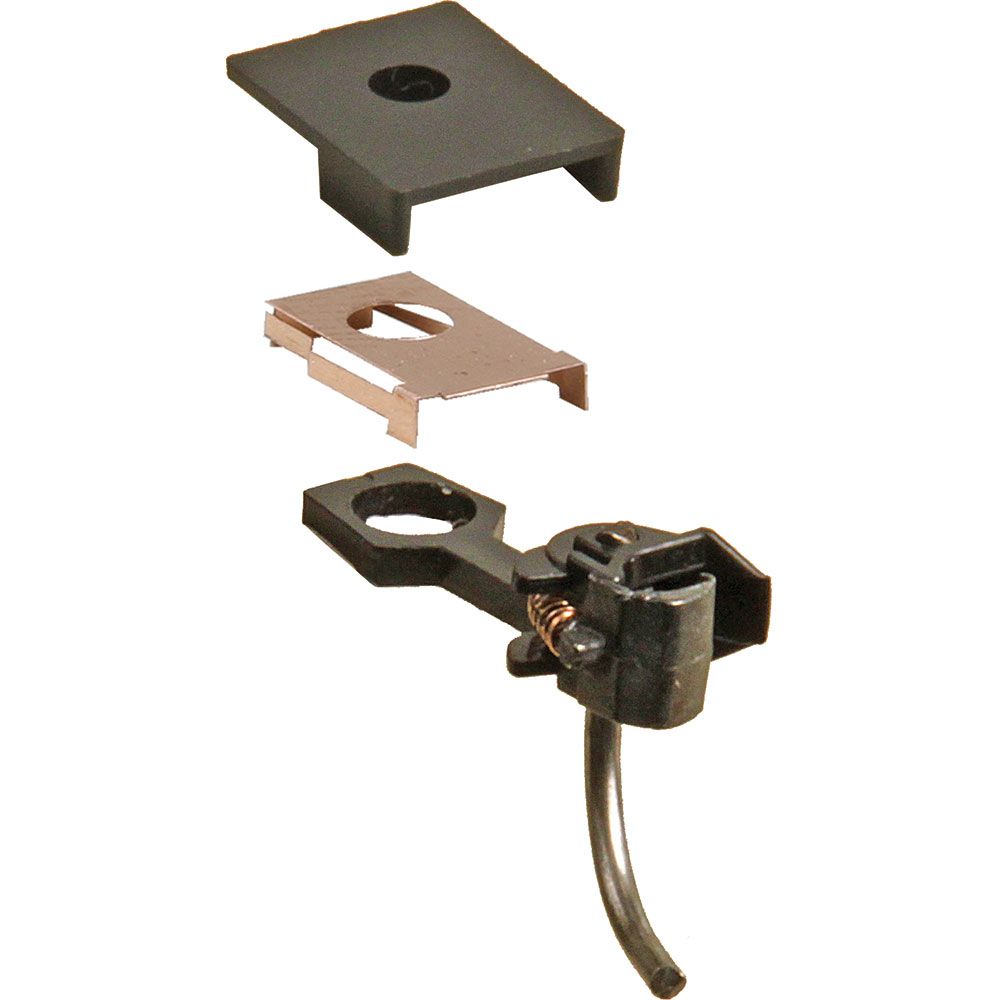

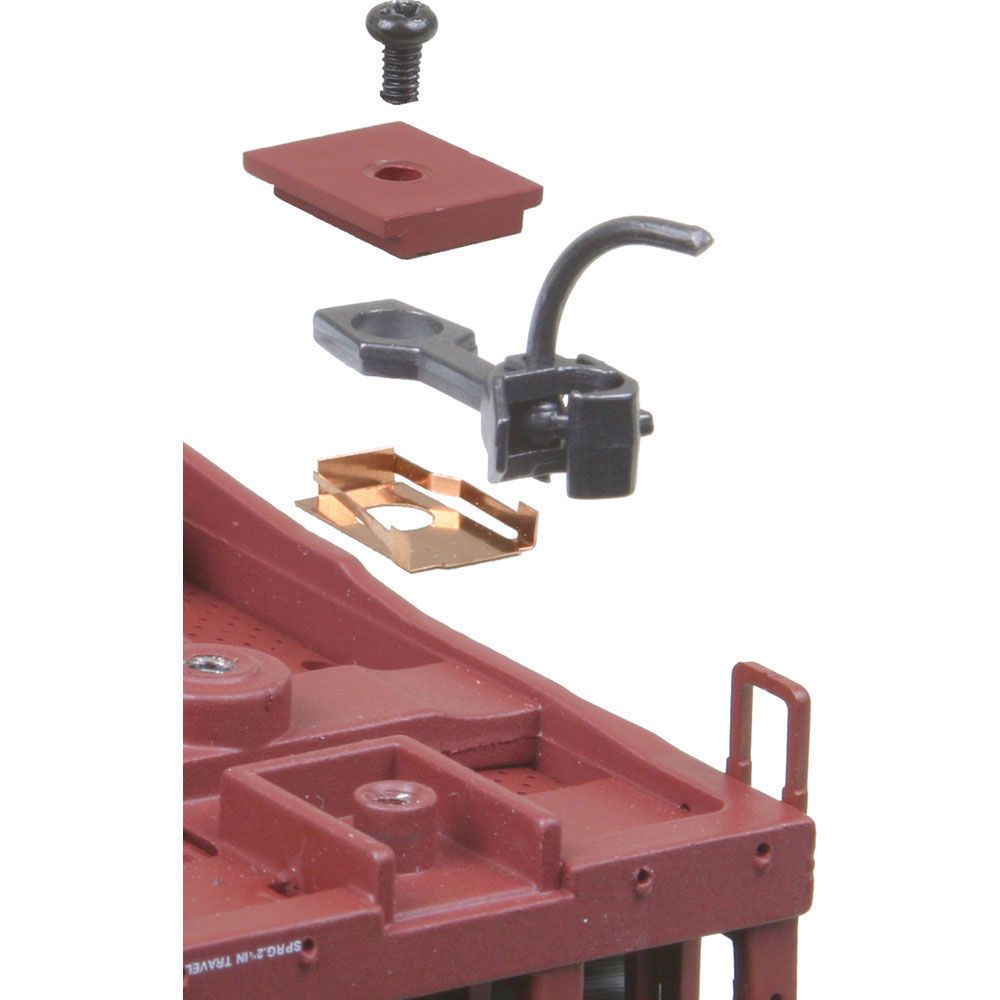

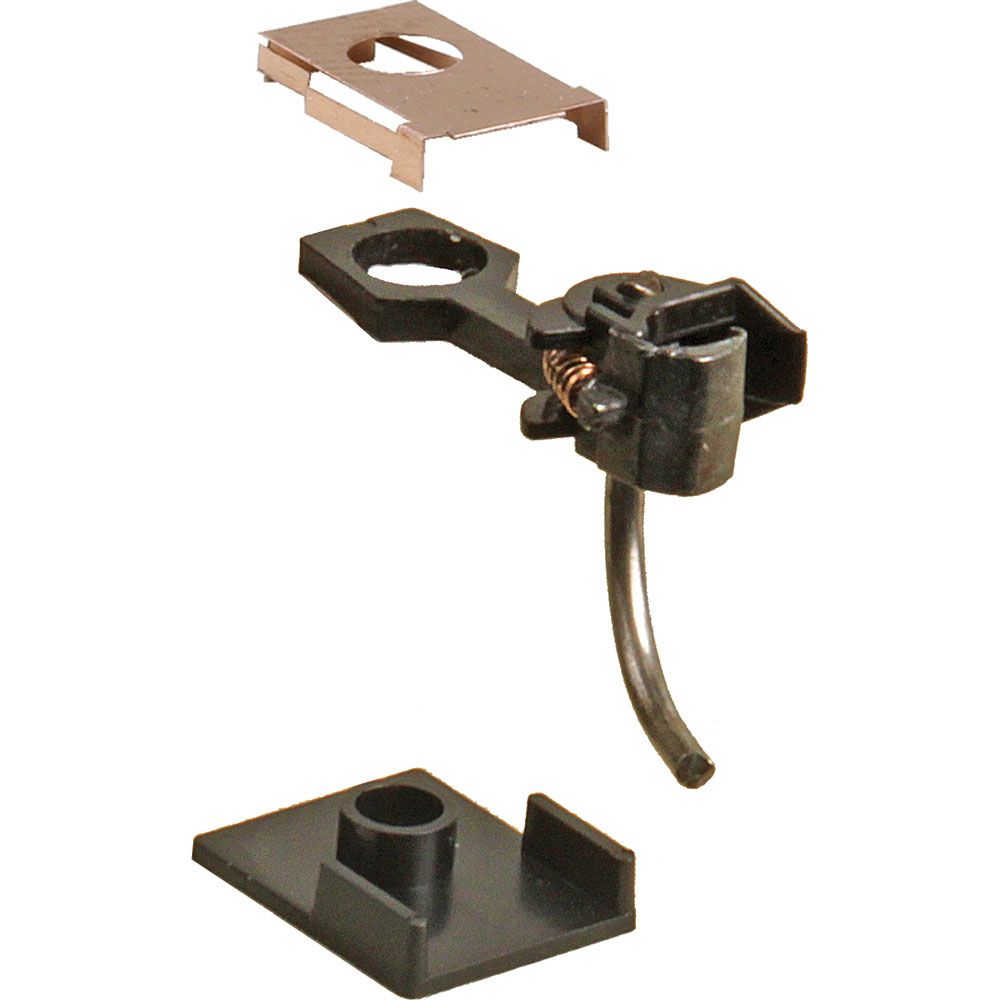

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#27 Magne-Matic® Plastic Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Package Includes:

(2) Pair #27 Plastic Shank Couplers - Medium Underset Shank

(2) Pair #634 Centering Spring NO.5® Style

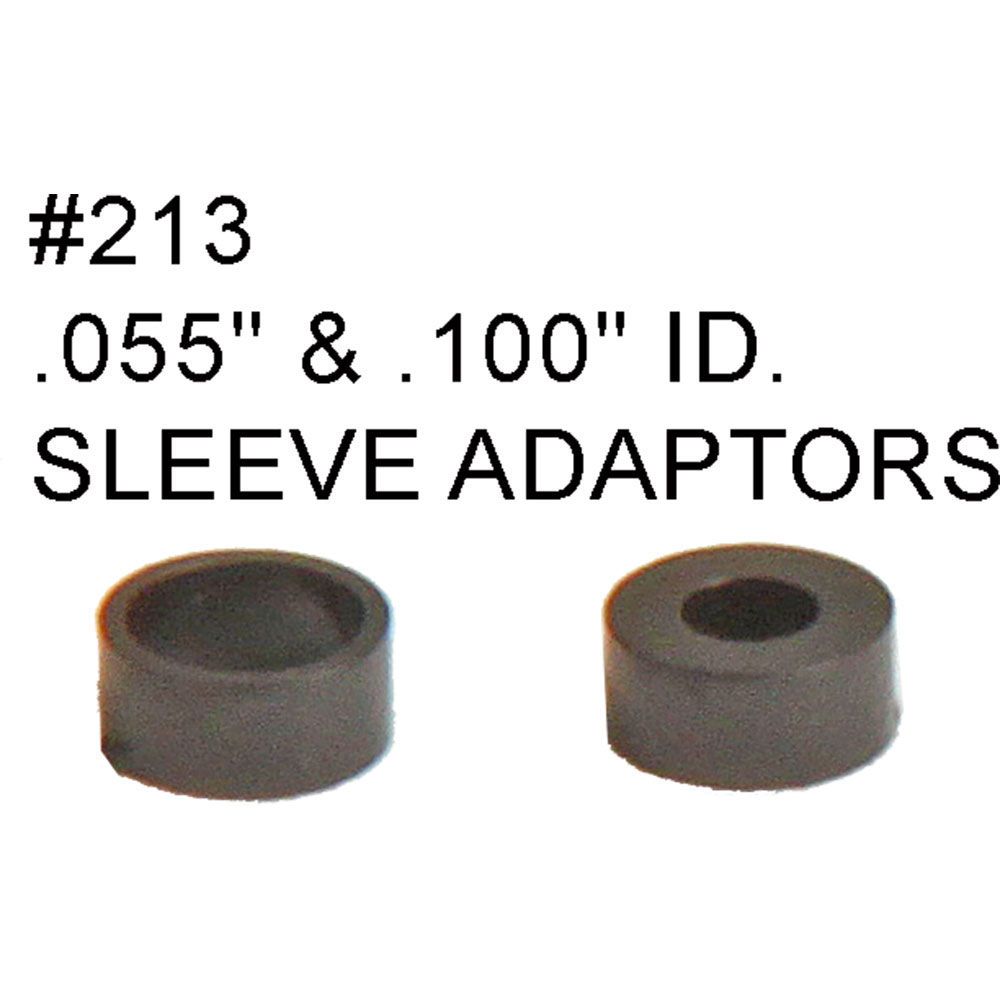

(2) Pair #213 055" ID & .100" ID Bushing/Sleeves

(2) Pair #212 Talgo Truck Adaptors

(2) Pair #213 Gearboxes

(2) Pair #232 Gearboxes

(2) #622 Knuckle Springs


#27 Plastic Coupler Features:

Material - Metal Knuckle, Plastic Coupler Shank

Shank Length - Medium (9/32") (center hole to back of coupler head)

Coupler Offset - Underset

Knuckle Spring - #622

Centering System - Standard Shank

Centering Spring - #634 Centering Spring NO.5® Style

Head - Standard Head

Works In Place of - #147, medium underset "clone" couplers

Works With - #213, #232, #234, #242, most manufacturer cast-on draft gearboxes

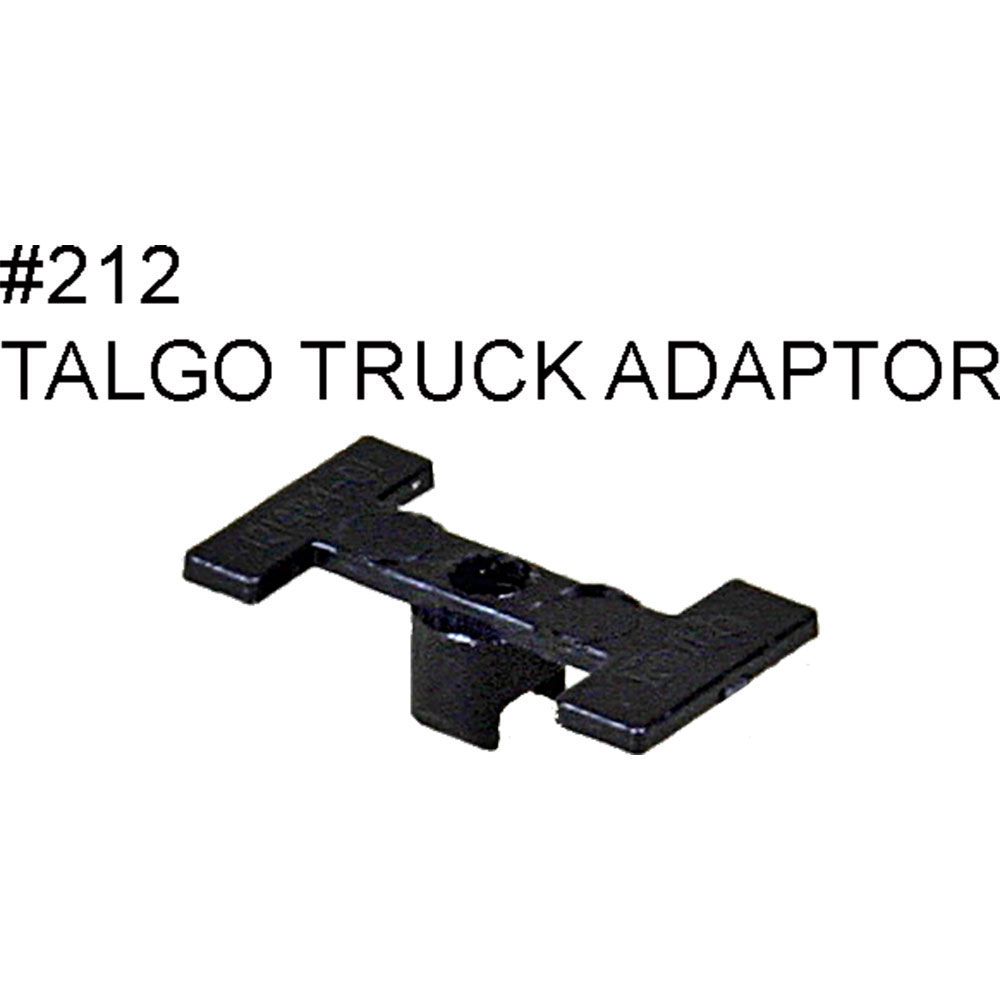

#212 Talgo Truck Adaptors:

Material - Insulated Plastic

Works With - NO.5®, #58, 20-Series and all Whisker® Couplers

To check coupler height, set the coupler into the talgo truck pocket and hold it level as possible and check the coupler height with a #205 or newer #206 HO coupler height gauge.

NOTE: So it is important to check coupler height and make sure it is correct "before" you insert the talgo truck adaptor, because it's almost impossible to remove without breaking something.

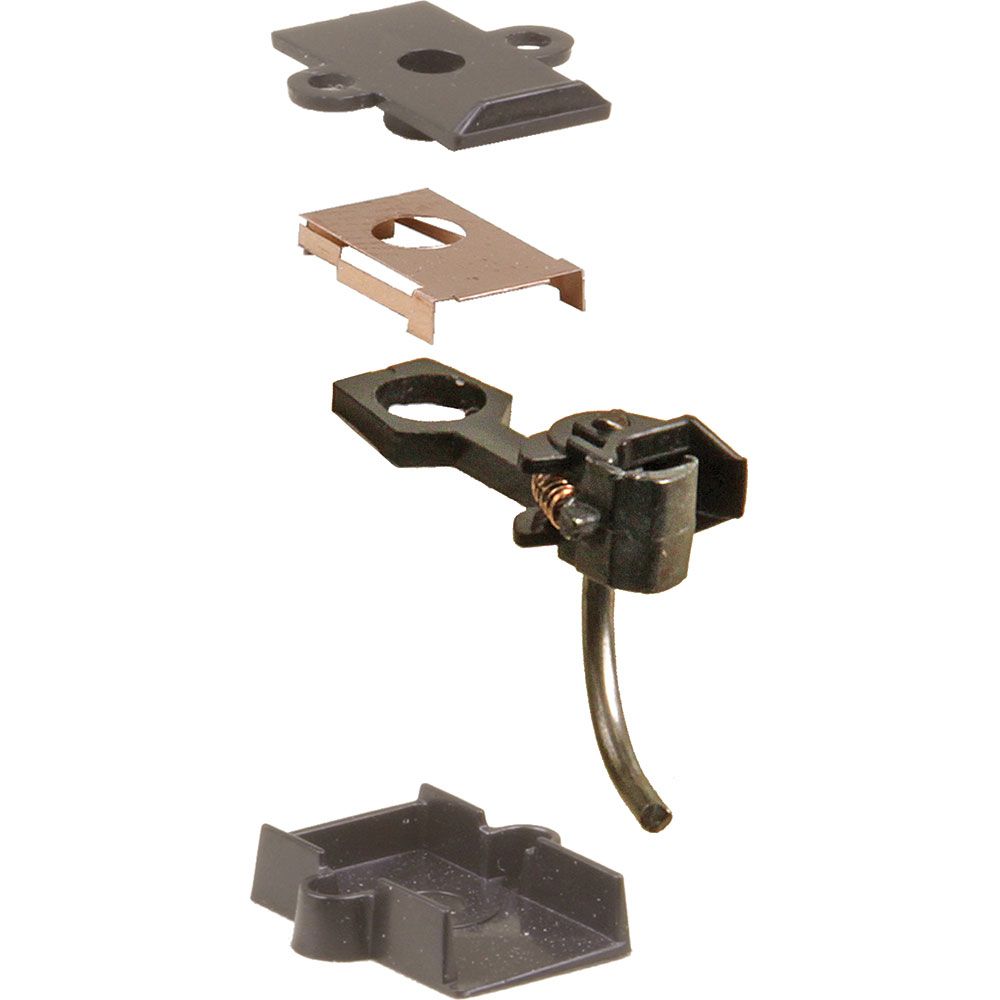

#213 Plastic Draft Gearboxes:

Material - Insulated Plastic

Dimensions - 25/64"L x 5/16"W x 3/32"H

Works With - NO.5®, #58, 20-Series and all Whisker® Couplers


#232 Plastic Draft Gearboxes & Lids Features:

Material - Insulated Plastic

Dimensions - 29/64"L x 19/64"W x 7/64"H

Works With - NO.5®, #58, 20-Series and all Whisker® Couplers

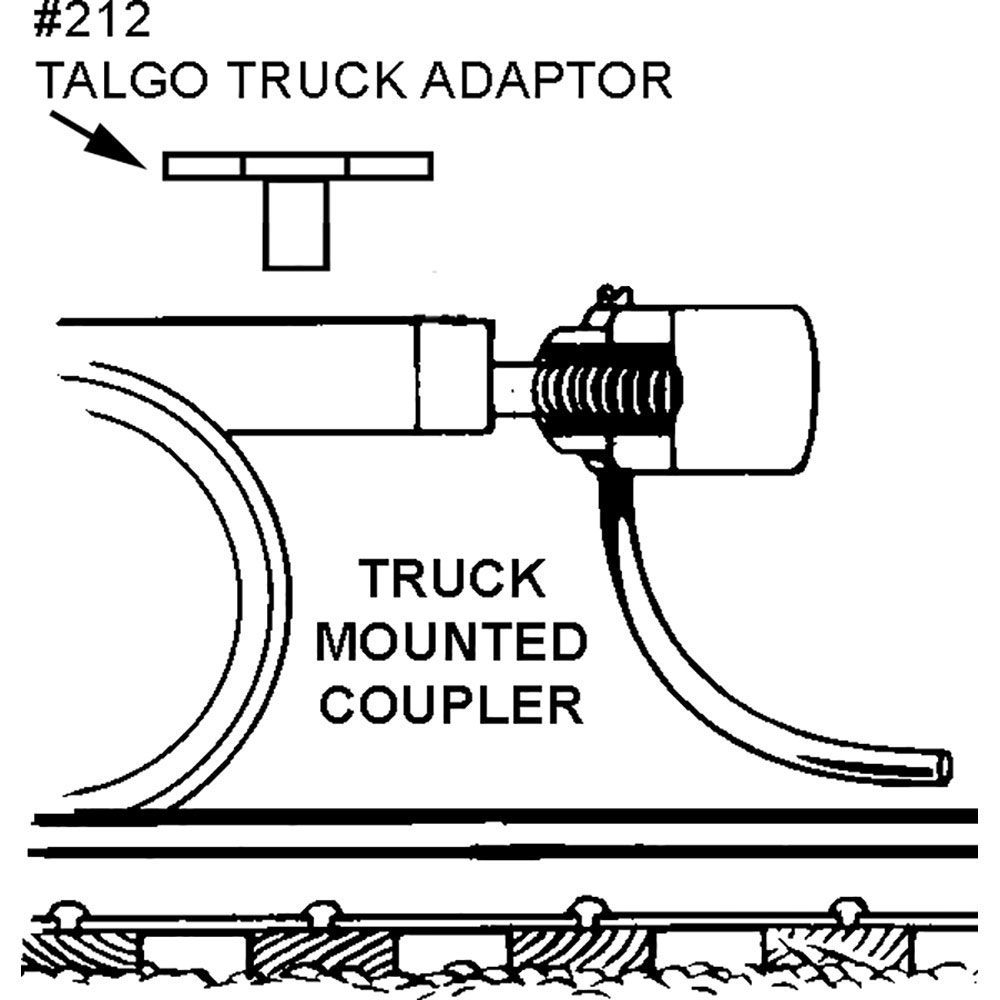

#27 with a #212 Talgo Truck Adaptor. Mounting Specifications:

Centerline - 25/64"

Trip Pin Height - 1/32"

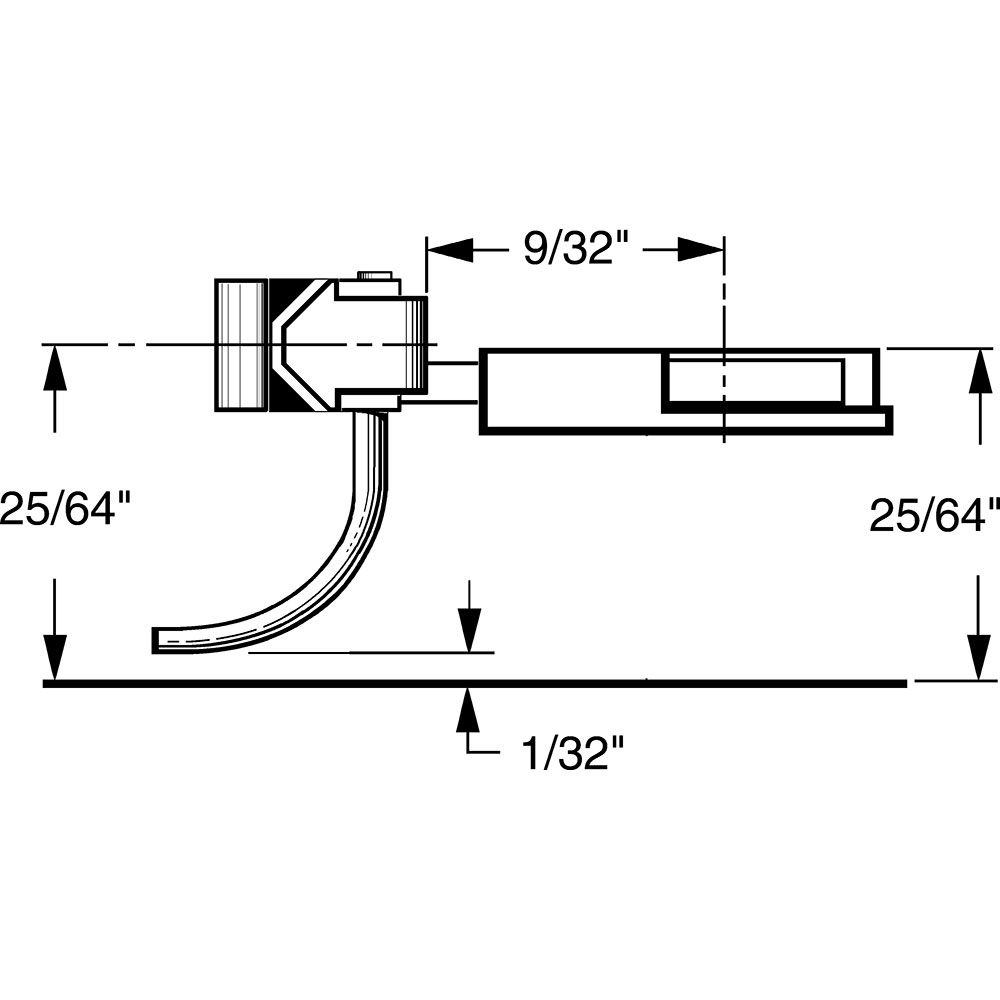

#27 in a #213 monted on bottom. Mounting Specifications:

Mounting Height - 25/64"

Centerline - 25/64"

Trip Pin Height - 1/32"

Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)

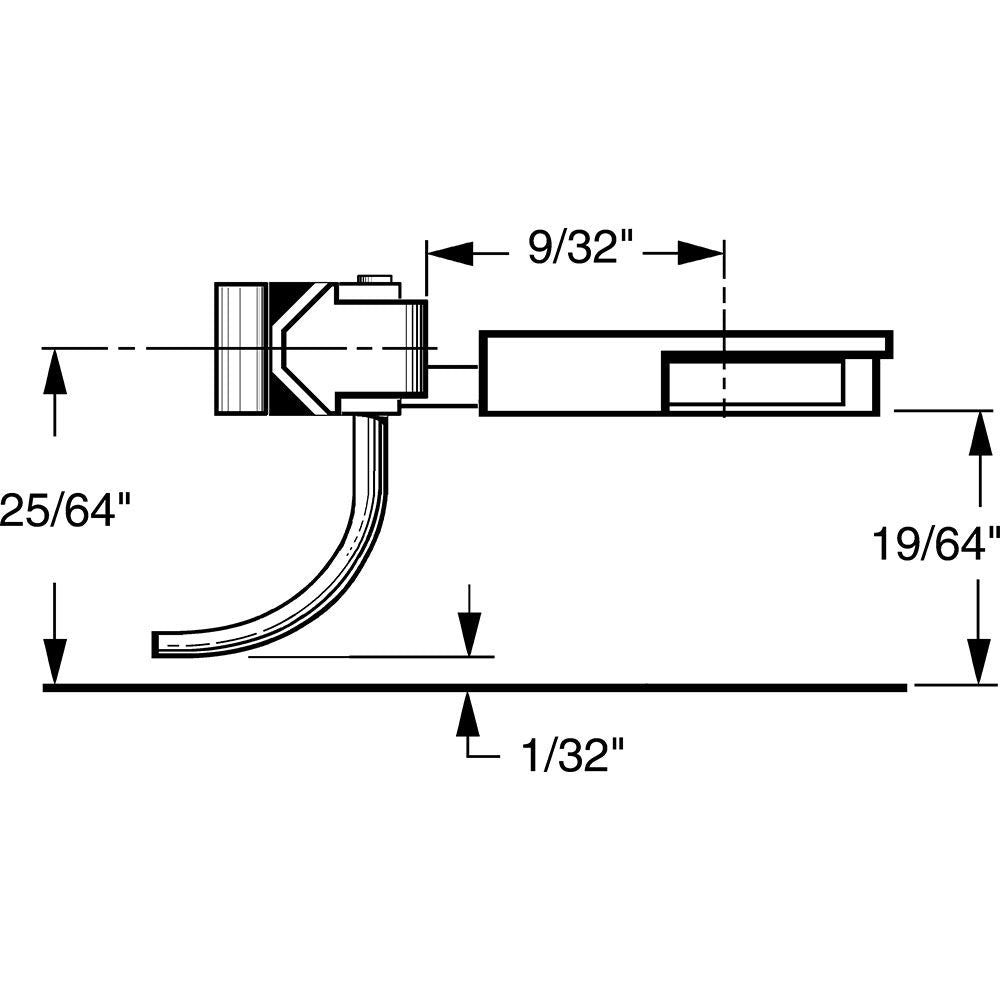

#27 in a #213 monted on top. Mounting Specifications:

Mounting Height - 19/64"

Centerline - 25/64"

Trip Pin Height - 1/32"

Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)


#27 in a #232 Mounting Specifications:

Mounting Height - 25/64"

Centerline - 25/64"

Trip Pin Height - 1/32"

Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)

Side Holes - 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)
